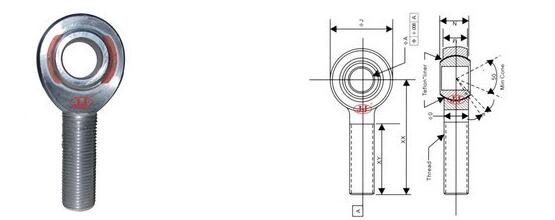

XM
[ Shanghai Oupan Bearing Co.,LTD clicks： ]
|
Bearing No. |
Dimensions |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Desc. |
Thread |
A |
L |
M |
N |
J |
XX |
XY |
a° |
Max Radial |
Approx |
|
XM-3 |
10-32 |
0.1900 |
0.438 |
0.234 |
0.312 |
0.625 |
1.250 |
0.750 |
17 |
900 |
0.03 |
|
XML-3 |
10-32-LH |
||||||||||
|
XM-4 |
1/4-28 |
0.2510 |
0.499 |
0.250 |
0.375 |
0.750 |
1.562 |
1.000 |
21 |
1800 |
0.04 |
|
XML-4 |
1/4-28-LH |
||||||||||
|
XM-5 |
5/16-24 |
0.3135 |
0.624 |
0.312 |
0.430 |
0.875 |
1.875 |
1.250 |
17 |
2900 |
0.07 |
|
XML-5 |
5/16-24-LH |
||||||||||
|
XM-6 |
3/8-24 |
0.3760 |
0.718 |
0.359 |
0.500 |
1.010 |
1.938 |
1.250 |
19 |
4100 |
0.11 |
|
XML-6 |
3/8-24-LH |
||||||||||
|
XM-7 |
7/16-20 |
0.4385 |
0.812 |
0.406 |
0.562 |
1.125 |
2.125 |
1.375 |
18 |
5300 |
0.15 |
|
XML-7 |
7/16-20-LH |
||||||||||
|
XM-8 |
1/2-20 |
0.5010 |
0.937 |
0.453 |
0.625 |
1.312 |
2.438 |
1.500 |
17 |
7100 |
0.24 |
|
XML-8 |
1/2-20-LH |
||||||||||
|
XM-10 |
5/8-18 |
0.6260 |
1.131 |
0.484 |
0.750 |
1.510 |
2.625 |
1.625 |
22 |
8300 |
0.36 |
|
XML-10 |
5/8-18-LH |
||||||||||
|
XM-12 |
3/4-16 |
0.7510 |
1.312 |
0.593 |
0.875 |
1.755 |
2.875 |
1.750 |
18 |
12000 |
0.57 |
|
XML-12 |
3/4-16-LH |
||||||||||
|
XM-16 |
1-14 |
1.000 |
1.875 |
1.000 |
1.375 |
2.750 |
4.125 |
2.215 |
17 |
30000 |
0.72 |
|
XML-16 |
1-14-LH |
||||||||||
Housing: Carbon chromium steel
Steel ball: Carbon chromium steel
Lubrication pad: Nylon.
